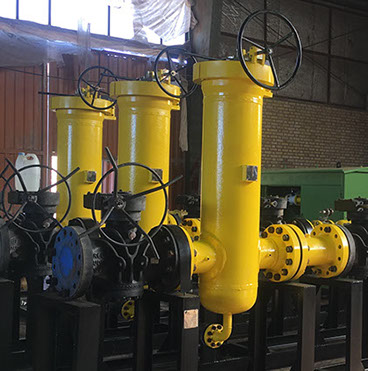

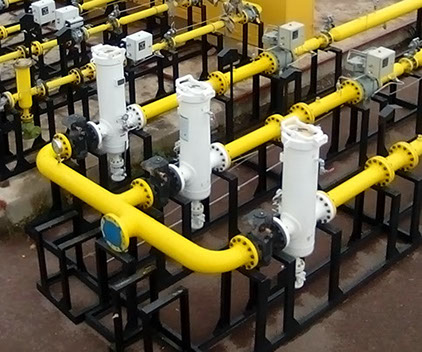

Dry Gas Filter
The dry gas filter is used for trapping and retaining fine particles, which are the most damaging and have harmful effects on pressure equipment.
the filter is designed to remove entrained solid particles down to 5 μm diameter from the dry gas stream using one or two disposable cleanable cartridge element. Gas enters the filter, because of the increasing the surface area, gas speed reduces and suspended particles in the gas through the passing of gas from filter element separated and sediment in the tank. The dry gas filter is also equipped with a quick-release door to allow periodic inspections of the tank and quick and easy replacement of the filter elements.
Projects in this regard include:
|
Client |
Qty |
Description |
Year |
Row |
|
NIGC-Zanjan Gas Co. |
82 |
Design and Construction of dry gas
filters for flat stations (Contract No: 3069850124) including: |
2017 |
1 |
|
32 |
2-inch filter with 6-inch body class
#150 |
2 |
||
|
|
20 |
2-inch filter with 6-inch body class
#300 |
|
3 |
|
|
30 |
3-inch filter with 6-inch body class
#300 |
|
4 |
|
NIGC-Zanjan Gas Co. |
153 |
Design and Construction of dry gas
filters (Contract No: 9710146) including: |
2019 |
5 |
|
|
38 |
2-inch filter with 6-inch body class
#150 |
|
6 |
|
|
8 |
3-inch filter with 6-inch body class
#150 |
|
7 |
|
|
13 |
1-inch filter with 4-inch body class
#150 |
|
8 |
|
|
68 |
2-inch filter with 6-inch body class
#300 |
|
9 |
|
|
20 |
3-inch filter with 6-inch body class
#300 |
|
10 |
|
|
6 |
4-inch filter with 10-inch body class
#300 |
|
11 |
|
NIGC-Zanjan Gas Co. |
40 |
Design and Construction of dry gas
filters (Contract No: 3043840067) including: |
2015 |
12 |
|
|
16 |
2-inch filter with 6-inch body class
#300 |
|
13 |
|
|
21 |
4-inch filter with 10-inch body class
#300 |
|
14 |
|
|
3 |
6-inch filter with 12-inch body class
#150 |
|
15 |
|
NIGC-Zanjan Gas Co. |
8 |
Design and Construction of dry gas filters
for flat and cabinet stations (Contract No: 3029860011) including: |
2017 |
16 |
|
|
4 |
6-inch filter with 6-inch body class
#150 |
|
17 |
|
|
2 |
3-inch filter with 6-inch body class
#300 |
|
18 |
|
|
2 |
4-inch filter with 10-inch body class
#150 |
|
19 |
|
NIGC-Zanjan Gas Co. |
37 |
Design and Construction of dry gas
filters for flat and cabinet stations (Contract No: 3069830100) including: |
2015 |
20 |
|
|
10 |
2-inch filter with 6-inch body class
#150 |
|
21 |
|
|
2 |
3-inch filter with 6-inch body class
#150 |
|
22 |
|
|
10 |
3-inch filter with 6-inch body class
#300 |
|
23 |
|
|
2 |
4-inch filter with 10-inch body class
#150 |
|
24 |
|
|
6 |
6-inch filter with 12-inch body class
#300 |
|
25 |
|
|
2 |
6-inch filter with 12-inch body class
#300 |
|
26 |
|
|
3 |
6-inch filter with 12-inch body class
#600 |
|
27 |
